商品の詳細:
お支払配送条件:
|
| 保証: | 1年 | 提供される売り上げ後のサービス: | のビデオ テクニカル サポート、オンライン サポート、利用できるエンジニア機械類を海外に整備するために依託し、訓練し、フィールド整備、そして修理サービス自由な予備品、分野の取付け |
|---|---|---|---|
| 電圧: | 220-660 V | 紡錘の速度（r.p.m）の範囲: | 2000 - 6000 |
| 適用: | 、処理する、食品加工薬処理するプラスチック処理する化学薬品 | 材料: | ステンレス鋼 |
| Applicantion: | 化学薬品、食糧および薬剤ライン | 港: | 上海中国 |
| ハイライト: | 超微粉の粉の粉砕機,薬剤の粉の粉砕機 |
||

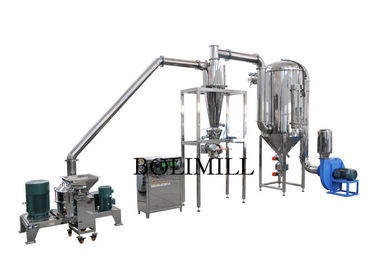

New Design Mustard Seeds Fine Powder Grinding Machine With Air Cooling System
Main Usage
Comprised of main frame, auxiliary machine and electrical control cabinet, this machine has such performances as winnowing, screen or mesh free, uniform size and continuous operation, and has reached the international advanced level, thus being widely used for material crushing in pharmaceutical, chemical and foodstuff trades etc.
Features
1.The design is compact and structure is reasonable. The material is equipped with an internal classification mechanism so that grinding and classification are carried out simultaneously, thus reducing energy consupmtion.
2.Equipped with a blower, which dissipates the heat in the machine continuously, the machine is fit for the grinding of thermal sensitive materials.
3.Having a great adaptability and narrow granularity distribution. The granularity of the product is even and fineness may reach 80-320 mesh.
4.Regulate the speed of the classifier or amount of the air without stopping the machine and evenly distributed products of the required granularity will be obtained.
5.The top cover of the main machine is opened with pneumatic springs and the body is constructed in such a way that it may be opened to two sides so that no hindrance will be met in cleaning and servicing the internal parts.
Technical Data
| Model | Main Structural Dimensions(mm) | Capacity | Input Particle Size | Output Particle Size | Speed | Machine weight | Total power | ||||||
| L1 | L2 | H1 | H2 | H3 | H4 | W1 | Kg/H | mm | mm | rpm | Kg | KW | |
| JB-15 | 3950 | —— | 2640 | 850 | 650 | 350 | 1450 | 10-150 | <6 | 60-320 | 1100 | 600 | 13.5 |
| JB-20 | 4300 | 5900 | 2800 | 850 | 650 | 350 | 1450 | 15-200 | <10 | 60-320 | 1300 | 5400 | 21 |
| JB-30 | 5250 | 7050 | 3200 | 950 | 650 | 350 | 1550 | 50-600 | <12 | 60-320 | 2000 | 3800 | 46 |
| JB-60 | 6100 | 8100 | 3700 | 1050 | 650 | 400 | 2000 | 100-1000 | <15 | 60-320 | 3800 | 2900 | 84 |
| JB-80 | 7200 | 9200 | 4250 | 1150 | 650 | 400 | 2300 | 120-1800 | <15 | 60-320 | 5100 | 2500 | 123 |
| JB-100 | 7900 | 10100 | 4500 | 1250 | 650 | 400 | 2500 | 150-2000 | <20 | 60-320 | 7400 | 2000 | 183 |

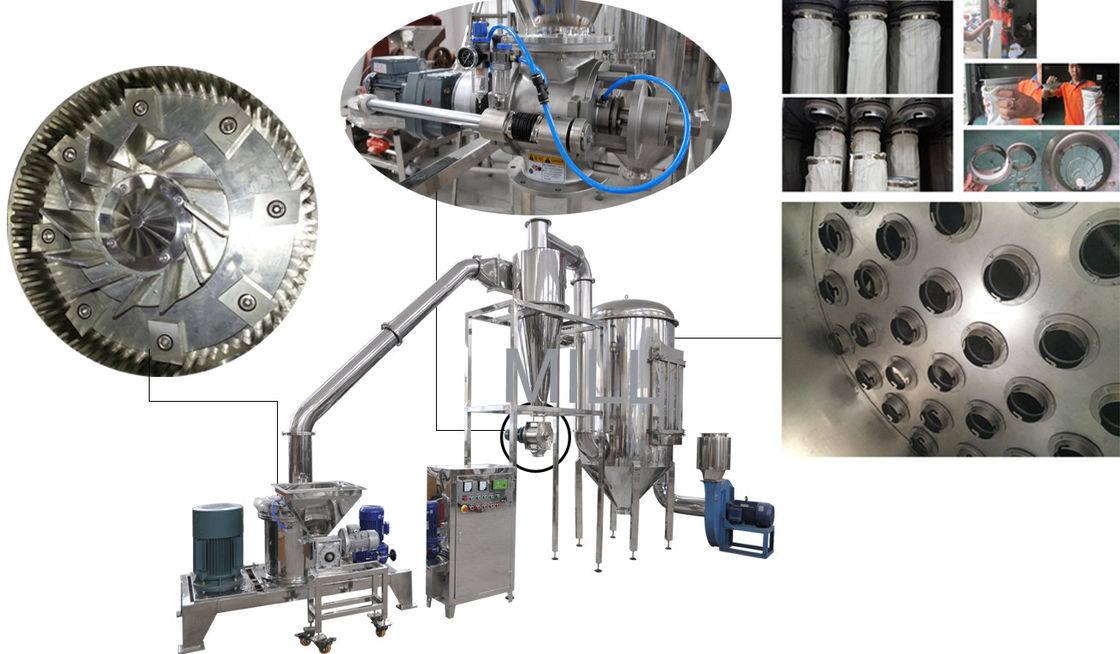

Detail Pictures of New Design Mustard Seeds Fine Powder Grinding Machine With Air Cooling System
