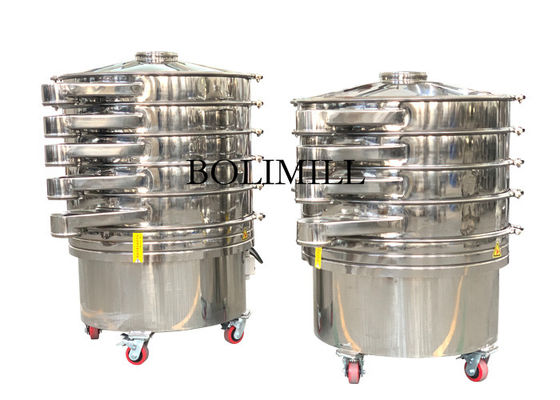

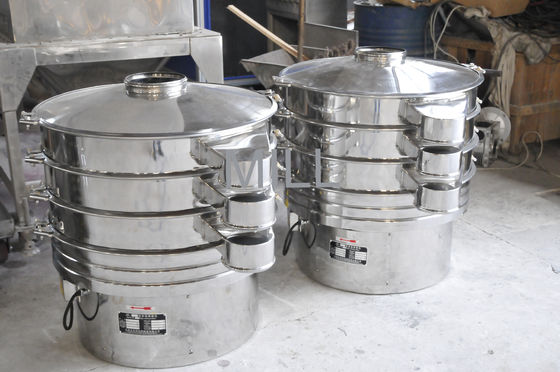

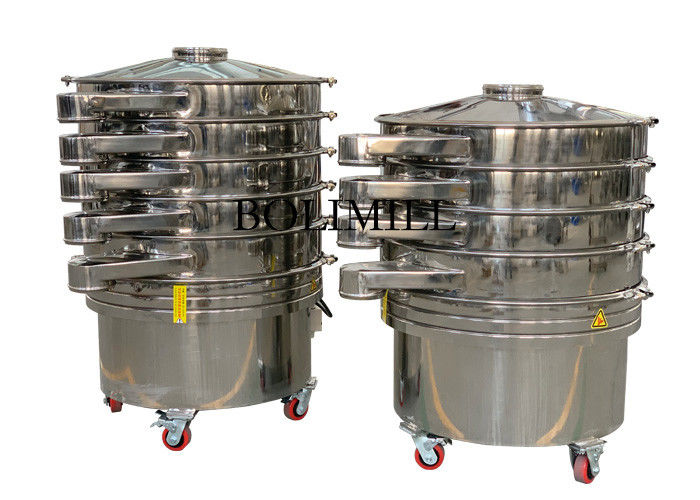

High Precision Round Grading Powder Vibro Sieve Machine With GMP And CE Certificate

Features

This machine is comprised of hopper,vibrating chamber, coupling and motor etc., Where the vibrating chamber is composed by eccentric wheel,rubber part, spindle and bearing etc. when eccentric weight is conveyed to the centerline of spindle through motor driving ,it generates centrifugal force under unbalanced state,by which, material is forced to form regular eddy inside, and the amplitude of the weight adjuster can be regulated according to different material and screens .the whole machine features compact structure, low volume, no dust flying, low noise, high output, low energy consumption and convenient move and maintenance.

This machine is a new type and high precision fine powder sieving machine with characteristics of high efficiency & lower noise. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.

Technical Data

Photos

Our service

Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.

1) We are golden supplier on alibaba with a history of more than 10 years.

And our factory’s history is more than 15 years.

2) We have CE certificate, ISO,BV...etc.

3) Each year,we takes part in a lot of Expos ,for example: FIC, CPHI, API...etc

FAQ:

If you want to send inquriy to me about Stainless steel Powder Sifting Machine from China, could you please tell me?
1) What material you want to sift, is it dry? what is the size of feed material ?
2) What capacity you expect by Powder Sifting Machine? (kg/h)
3) What mesh or mm or micron(size) of the powder you want to sift?
4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
